福斯Flowserve Bolted bonnet Y型截止閥

點擊圖片查看原圖

品牌：	Edward
Size：	1" - 2 "
Pressure：	class 800 - 1500
單價：	8888.00元/臺
所在地：	上海
有效期至：	長期有效
最后更新：	2019-05-31 10:47
瀏覽次數：	511

店鋪基本資料信息

flowserve閥門
[VIP第3年] 指數:8
通過認證 [誠信檔案]
聯系人周經理(女士) 銷售經理
會員 [當前離線]
電話0731-88706966
地址上海市寶山區富聯一路98弄6號

產品詳細說明

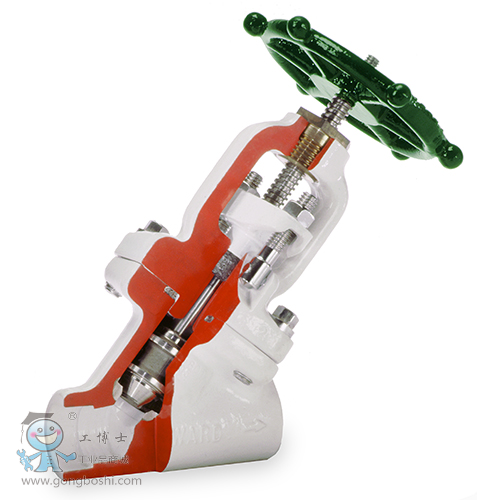

The Bolted Bonnet Y-Pattern Globe Valve is a durable, high-performance small bore globe valve that is forged and equipped with a bolted-bonnet design for improved maintenance.

Features and Benefits

•Increased uptime from construction material hardness with a low coefficient of friction that results in reduced torque, minimal stem wear and elimination of galling
•Lower maintenance costs due to bolted bonnet, four-bolt design
•Longer service life from an integral hardened seat and secondary stem which provide positive shut-off, extended seat life and leak protection
•Improved plant and personnel safety through a rugged, knobbed hand wheel that provides sure grip even when wearing gloves

Size Range:

NPS 1/2 to 2

DN 15 to 50

Pressure Class Range: 800 to 1500

Seating Material: Metal
