產(chǎn)品闡述

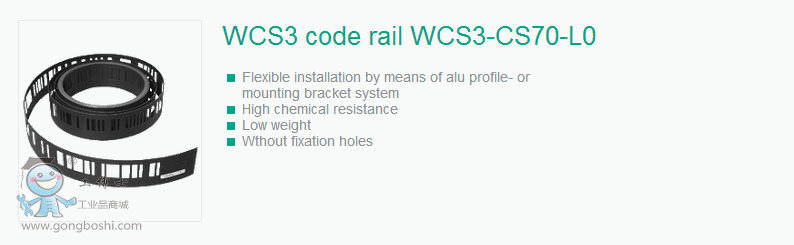

Code rail, polyester laminate
General specifications
Length 0.1 ... 314.5 m
Radius of bend ≥ 300 mm
Ambient conditions
Operating temperature -40 ... 60 °C (-40 ... 140 °F)
Storage temperature -40 ... 60 °C (-40 ... 140 °F)
Installation temperature 10 ... 60 °C (50 ... 140 °F)
Mechanical specifications
Material thickness 0.75 ... 0.95 mm
Tension loading ≤ 260 N
Material polyester laminate
Thermal expansion coefficient approx. 2.8 x 10-5 / K
Mass 40 g / m
Manufacturing tolerance ± 1 mm/m
General information
Ordering information WCS3-CS70-L0: without mounting holes
WCS3-CS70-L1: with standard mounting holes
WCS3-CS70-L2: with Vahle VKS mounting holes
